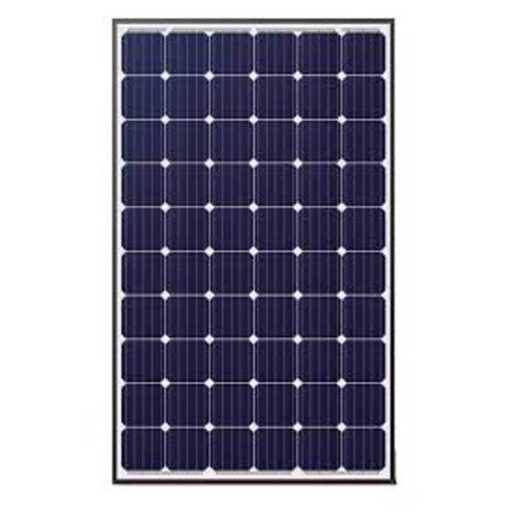

305W Longi Solar Panel (Mono)

305W Longi Solar Panel (Mono)

Store / Solar
$185.00
On Sale
was $250.00 Save 26%
In stock: 5 available
4
Minimum purchase quantity: 4 items
Product Details

305W Longi Solar Monocrystalline

Mechanical Characteristics

  • Type Monocrystalline
  • Output Terminal Type Multicontact Connector Type 4
  • Output Cable Wire Gauge 12 AWG
  • Output Cable Wire Type PV Wire
  • Output Cable Wire Length 39.4in (1000mm)
  • Frame Color Black
  • Backsheet Color Black
  • Length 65in (1,650mm)
  • Width 39in (991mm)
  • Depth 1.6in (40mm)
  • Weight 40.1lb (18.2kg)
  • Installation Method Rack-Mounted

Electrical Characteristics

  • STC Power Rating 305W
  • Peak Efficiency 18.7 %
  • Power Tolerances 0/+5W
  • Number of Cells 60
  • Imp 9.24 A
  • Vmp 33V
  • Isc 9.94A
  • Voc 40.2 V
  • Temp. Coefficient of Isc 0.057%/C
  • Temp. Coefficient of Power -0.380%/C
  • Temp. Coefficient of Voltage -0.286%/C
  • Max Series Fuse Rating 20 A
  • Maximum System Voltage 1000V

Warranty Specifications

Output Warranty Term – 25 year, Linear
Workmanship Warranty Term – 10 years
