IntegraRack IR-15 IR-15RF1015 BallastRack Racking System (Single Frame)

IntegraRack IR-15 BallastRack Racking System

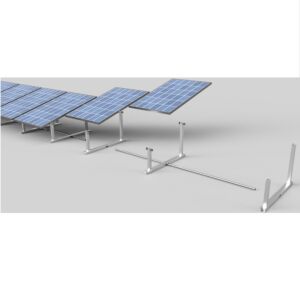

The IR-15 is among the most versatile solar module ground mounting systems available. Designed to accommodate solar modules of any size, including 700 Watt jumbo panels, the IR-15 Racking System ensures compatibility and efficiency. With four innovative mounting options, it excels in various terrains, from soft sand to rocky ground, allowing for rapid installation times. Each IR-15 Frame can be assembled in under two minutes, making it a highly cost-effective ground mount racking solution. Unlike other systems, the IR-15 requires no concrete footings, post-pounded poles, or manual shoveling of dirt. Constructed from 6061 T6 aircraft-grade aluminum and stainless steel, it offers superior strength, lightweight construction, and compact shipping. The fixed 15° design provides optimal year-round energy production across most of the United States, and its adjustable module height feature ensures excellent ground clearance and efficient snow shedding.

Key Features:

• Lightning Fast Assembly & Install
• Universal Mounting
• Lowest Cost Per kW
• No Limitation On Solar Module Size
• High-Strength Engineered & Tested For Class Leading Performance

Benefits:

• Increased Energy Efficiency: By facilitating optimal panel angling and spacing, the system enhances the efficiency of solar energy capture, thereby increasing the overall output of your solar array.
• Reduced Installation Costs: The straightforward assembly and non-invasive mounting approach minimize installation time and associated costs.
• Robust Weather Resistance: Designed to resist wind uplift and other environmental impacts, ensuring stable and secure solar panel performance in various weather conditions.

Included hardware:

• (1) Base Tube
• (1) Long Leg
• (1) Short Leg
• (4) M8-1.25 x 90mm Carriage Bolts
• (4) IR-F2 Flange Clamp Bonding Brackets
• (4) M8-1.25 x 65mm Carriage Bolts
• (8) M8-1.25 Serrated Nuts
• (4) M8-1.25 x 16mm Thread Cutting Bolts
