IntegraRack IR-D1 IR-D1MS4061 Super Sealing Multi-Surface Deck Mounted Bracket

IntegraRack IR-D1 Super Sealing Deck Mounted Bracket

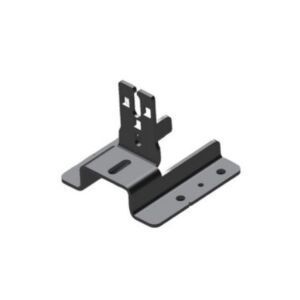

The IntegraRack IR-D1 Multiple Surface Deck Mounted Bracket is designed to fit most metal and asphalt roofs and is compatible with all rail-based systems. Featuring our patent-pending Super Sealing Technology, it includes Hydro-Forming Mastic Rubber on the bracket's bottom and washers fitted with EPDM Rubber to ensure a watertight seal for the lifespan of your system. This bracket can be mounted anywhere on the roof without the need for rafters or joists. The Hydro Sealing Mastic Rubber on the bottom flows into the screw threads, maintaining its shape to prevent leaks.

This product meets UL 2703 Mechanical and Bonding requirements.

Key Features:

• Multi-Surface Design: The IR-D1 Multiple Surface Bracket is designed to fit most metal and asphalt roofs and can be deck mounted anywhere without the need for rafters or joists. Its hat-shaped structure allows for easy mounting over most standard corrugations on metal roofs.
• Super Sealing Technology: This bracket includes four black anodized self-piercing deck bolts and EPDM sealing washers. Our unique Hydro-Forming Mastic Rubber expands into the threads of the deck bolts and through the two visual inspection holes when the correct bolt pressure is applied, ensuring a 100% infusion seal with the roof surface.
• Rail-Less: This bracket is compatible with most rail-based systems, as well as our IR-F1 Rail-Less Module Flange Clamp Bonding Bracket. This allows for rapid module installation by enabling you to snap your modules into place in seconds while bonding them together for exceptionally fast installation times.
• Quick Fold Bend Tabs: The Bend Tab Clamps on top of our brackets are designed for use with our innovative rail-less module clamping system, but they are also compatible with most rail-based systems. By quickly folding the tab over with a flathead screwdriver, the solar module frame is clamped directly to the IR-F1 Rail-Less Module Flange Clamp Bonding Bracket, securely bonding and locking the solar module in place. For mid-row brackets, the tabs can be bent in different directions, while for end modules, both tabs can be bent in the same direction to provide additional clamping tension.

Included hardware:

• (4) M8x40mm Flange Head Deck Mounting Bolts with EPDM Sealed Washer and Hydro-Forming Mastic Rubber™ on the bottom of foot.
