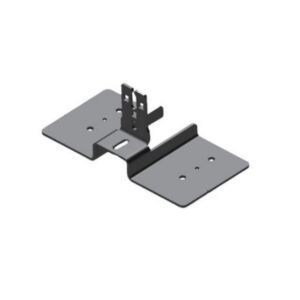

IntegraRack IR-D2 IR-D2MS4162 Super Sealing Wide Foot TPO Bracket

IntegraRack IR-D2 IR-D2MS4162 Super Sealing Wide Foot TPO Bracket

The IntegraRack Super Sealing Wide Foot TPO Mounted Bracket is the quickest and easiest solution on the market, with installation taking less than one minute! The IR-D2 can be mounted using only a fast-setting polyurethane sealant, providing up to 200 pounds of uplift per bracket. For added strength, it can also be bolted to the roof. This bracket is compatible with most rail-based systems.

This product meets UL 2703 Mechanical and Bonding requirements.

Key Features:

• Lightning Fast Installation: The IR-D2 Wide Foot TPO Roof Mount is the fastest and easiest solution available, with installation taking less than one minute!
• No Penetration: This bracket can be mounted using only a fast-setting polyurethane sealant, providing up to 200 pounds of uplift per bracket, or it can be bolted to the roof for additional strength. The IR-D2 allows for flat, low-profile mounting of solar modules on TPO roofs and includes mounting points for micro-inverters and solar optimizers on each bracket.
• Compatible With All Rail Based Systems: Compatible with all rail-based solar mounting systems, the bracket features an opening for a 5/16" T-Bolt and an adjustable slot for a 3/8" T-Bolt, accommodating any rail system.
• Quick Fold Bend Tabs: The Bend Tab Clamps on top of the bracket are designed for our revolutionary rail-less module clamping system but can also be used with most rail-based systems. When folded over quickly with a flathead screwdriver, they clamp the solar module frame directly to the IR-F1 Rail-Less Module Flange Clamp Bonding Bracket, securely bonding and locking the module in place. For mid-row brackets, the tabs can be bent in different directions, while for end modules, both tabs can be bent in the same direction for increased clamping tension.
