Additional information
| Weight | 1248 oz |
|---|---|
| Dimensions | 32 × 19.5 × 12 in |

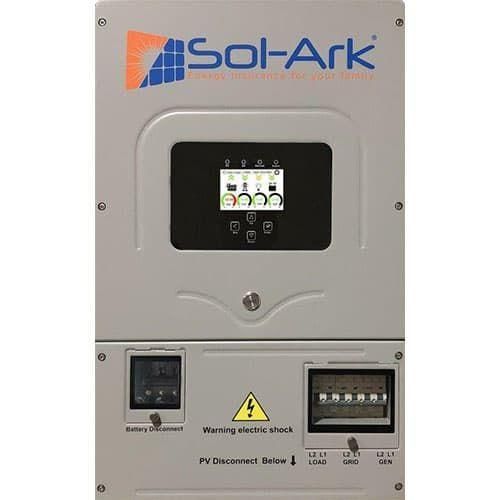

Sol-Ark SA-12K-EMP All-In-One Battery System, 12K 120/240/208V 48V EMP Hardened Inverter
$6,799.00
| Solar Output Power 12000W | |
|---|---|
| Max allowed PV power | 6500W + 6500W = 13,000W |
| Max PV power delivered to Battery & AC outputs | 12000W |
| Max DC voltage | 500V@18A, 450V@20A |
| MPPT voltage range | 150-425V |
| Starting voltage | 175V |
| Number of MPPT | 2 |
| Solar strings per MPPT | 2 w/o fuses, 3 w / fuses |
| Max DC current per MPPT (self limiting) | 20A@300V, 18A@400V |
| Max AC Coupled Input (Micro/String – Inverters | 9,600W |
| AC Output Power 9000W On-Grid & 8000W Off-Grid | |
|---|---|
| Connections | 120/240/208V split phase |
| Continuous AC power to Grid (On-Grid) | 9000W 37.5A L-L (240V) 4800W 40A L-N (120V) |
| Continuous AC power to Grid (Off-Grid) | 8000W 33A L-L (240V) 4800W 40A L-N (120V) |
| Surge AC power 5sec | 20,000VA L-L (240V) 10,000VA L-N (120V) |
| Parallel Stacking | 2-8 @ (240V); 2,3,6,9 @ (208V) |
| Frequency | 60/50Hz |
| Continuous AC power with Grid or Generator | 12000W 50A L-L (240V) 6000W 50A L-N (120V) |
| CEC Efficiency | 96.5% (Peak 97.0%) |
| Idle Consumption typical – no load | 60W |
| Sell back power modes | Limited to Household or Full Grid-Tied |
| Design (DC to AC) | Transformer less DC |
| Response Time (Grid-Tied to Off-Grid) | 4ms |
| Power Factor | +-0.9 – 1.0 |
| Battery (optional) Output Power 9000W | |
|---|---|
| Type | Lead-Acid or Li-Ion |
| Nominal DC Input | 48V |
| Capacity | 90 – 2000Ah |
| Voltage Range | 43.0 – 63.0V |
| Continuous Battery charging output | 185A |
| Charging curve | 3-stage w/ equalization |
| Grid to Batter Charging Efficiency | 96.5% |
| External temperature sensor | included |
| Current shunt for accurate % SOC | integrates |
| External Generator Start based on voltage of % SOC | integrated |
| Communications to Lithium battery | CanBus & RS485 |
| Protection & Certifications | |
|---|---|
| Electronics certified safety by SGS labs to NEC & UL Specs – NEC 690.4B & NEC 705.4/6 | Yes |
| Grid Sell Back – UL1741 – 2010/2018, IEEE1547z-2003/2014, FCC classB, UL1741SA, CA Rule 21, HECO Rule 14H | Yes |
| PV DC disconnect switch – NEC 240.15 | integrated |
| Ground Fault Detection – NEC 690.5 | integrated |
| PV rapid shutdown control – NEC 690.12 | integrated |
| PV Arc Fault detection – NEC 690.11/UL1699B | integrated |
| PV input lightning protection | integrated |
| AC input/output 50XA breakers | integrated |
| Battery breaker / disconnect | integrated |
| User wiring enclosure 4/3/4″ & 1″ knock-outs | integrated |
| Solar Flare/EMP Hardened to 2015 MIL-STD-461G (Independently testing June 2018 | optional |
| General | |
|---|---|
| Dimensions | 28.0″ x 17.375″ x 9.37″ |
| Weight | 74 lbs |
| Ensclosure | NEMA type 1 (Indoor Use) |
| Ambient Temperature (3 speed variable fans) | -25 to 55c, >45C derating |
| Display | Color touch screen |
| Wifi Communication (monitoring or SW updates) | included |
| Snap on sensors for limited selling to Household | included |
| Standard Warranty (verified by HALT testing) | 10 years |
Sol-Ark 12K-EMP Manual Sol-Ark 12K-EMP Specs Sheet
