SunEarth TRB-32

SunEarth TRB-32

Absorber Coating: Highly Selective Eta Plus®
Absorbtivity/Emissivity: 95%/5%
Absorber Plate Aluminum
Header Size: 1” Nominal Copper (1.125” OD)
Riser Size: 3/8” Nominal Copper (0.50” OD)
Glazing: Low Iron Prismatic/Matt Tempered Glass
Glazing/Header Seal: EPDM
Frame: AA 6063-T6 Bronze Anodized Aluminum
Backing Plate: AA3105-H26 Painted Embossed Aluminum
Insulation: Polyisocyanurate and Fiberglass R>12
Materials
Dimensions
Max Operating Pressure: 160psi
Max Wind/Snow Load: ±90psf
Max Operating Temperature 400°F
Max Flow Rate: 12gpm

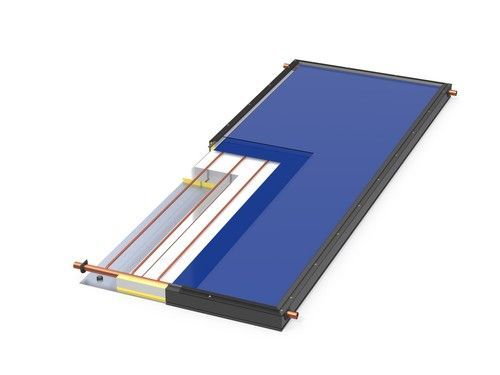

ThermoRay TRB-32 solar collector panel for domestic hot water applications featuring aluminum absorber with blue tec absorber coating on surface. Fluid passageways and header is all copper. Size is 4′ X 8′, 32 square feet. Black anodized extruded aluminum frame with low iron tempered glass.

This item is especially suitable for areas with severe winter climate or for use in space or radiant heating.

10 Year Warranty

PLEASE NOTE: Local Delivery Price is included.

SunEarth TRB-32 Datasheet
