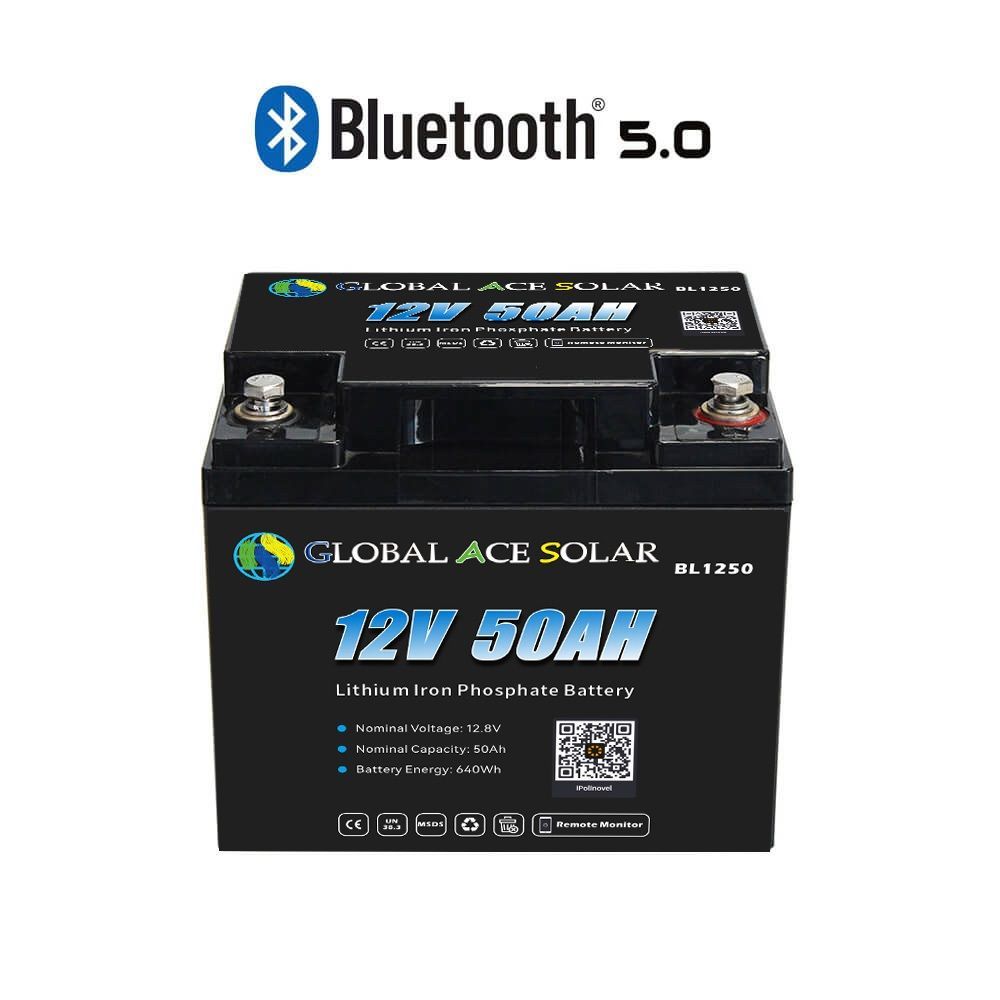

12V 50Ah Lithium Battery

Cell specification : LiFePO4-32700- 6.0Ah, 4S9P.

Model: BL1250-GA

Rated Capacity  54Ah      Standard discharge after standard charge

Nominal Voltage              12.8V     Operating voltage

Charge Method CC/CV   Constant current, constant voltage

Charge Voltage  14.6V

Discharge Cut-off Voltage             10.0V     Voltage at end of discharge

Recommended Charge Current   10A – 15A

Max Continuous Discharge Current           50A

Pulse Discharge Current 100A      <5S

Weight (approx.)              17.64 Lbs (8 kg)

Battery Dimension (L×W×H）     9.09” x 5.71” x 8.31” (231*145*211mm)

Operation Temperature Range:

Charge  32F～113F  (0～45℃)

Discharge -4F～140F (-20～60℃)

12V 50Ah Lithium Battery Datasheet
