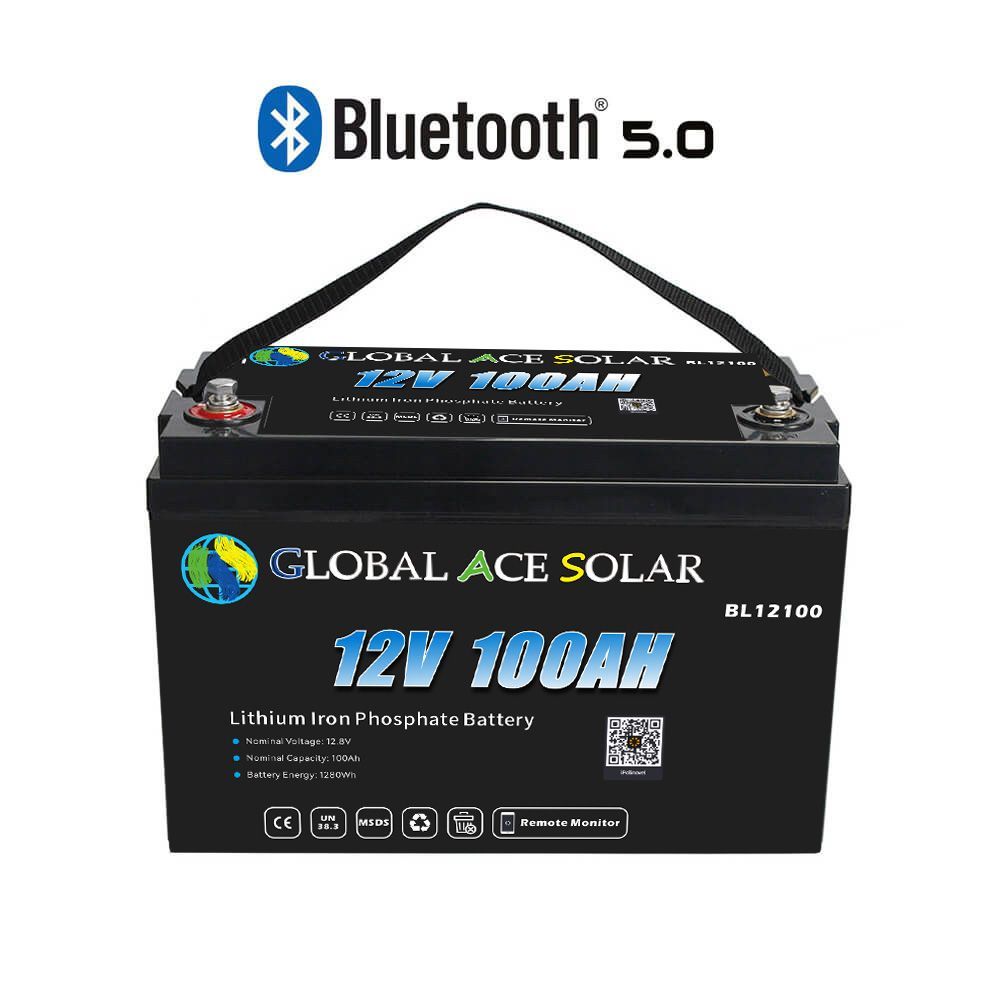

12V 100Ah Lithium Battery

Cell specification : LiFePO4-32700- 6.0Ah, 4S17P.

Model: BL12100-GA

Rated Capacity  102Ah      Standard discharge after standard charge

Nominal Voltage              12.8V     Operating voltage

Charge Method CC/CV   Constant current, constant voltage

Charge Voltage  14.6V

Discharge Cut-off Voltage             10.0V     Voltage at end of discharge

Recommended Charge Current   20A – 30A

Max Continuous Discharge Current           100A

Pulse Discharge Current            200A      <5S

Weight (approx.)              27.56 Lbs (12.5 kg)

Battery Dimension (L×W×H）     12.99” x 6.77” x 8.43” (330*172*214mm)

Operation Temperature Range:

Charge  32F～113F  (0～45℃)

Discharge -4F～140F (-20～60℃)

12V 100Ah Lithium Battery Datasheet
