51.2Vdc 280Ah 14.33Kwh Battery Module w/heating Modules

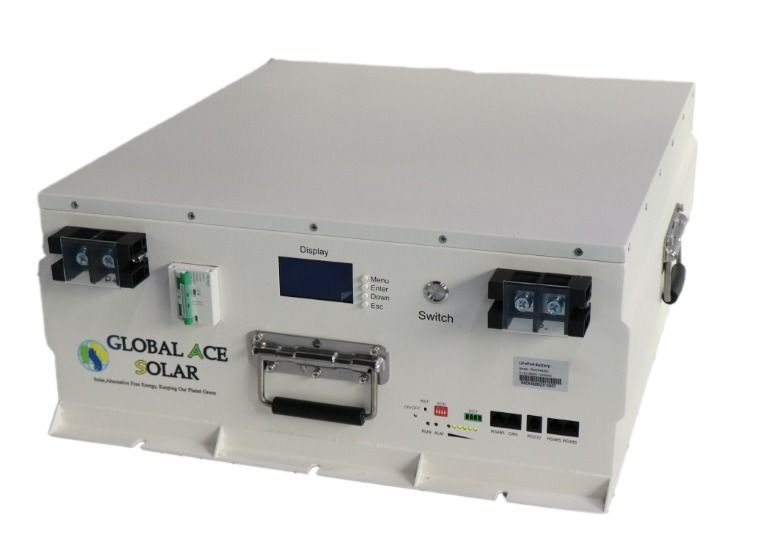

Global Ace Solar Single 51.2Vdc 280Ah 14.33kwh Battery Module with heating pads

Rated capacity – 280Ah
Standard voltage – 51.2V (16S)
Standard Charge voltage – 58.4V
Charge current – Normal 75A – Max 150A
Cut-off voltage – 40V
Continuous discharge current -150A
Peak discharge current – 160A / 1s
Total weight – Approximately 750kg / 1653.47lbs
Operation Temperature – Charge: 32 – 140°F
Heating: -40 ~ 32°F (only working with charging)
Discharge: -4F – 140°F
Storage environment Temperature – 50 – 113°F
Battery dimension L= 770mm(30.3”) x W=860mm(33.86”) x H=1450mm(57.09”)

51.2Vdc Lithium Battery Datasheet & Manual
